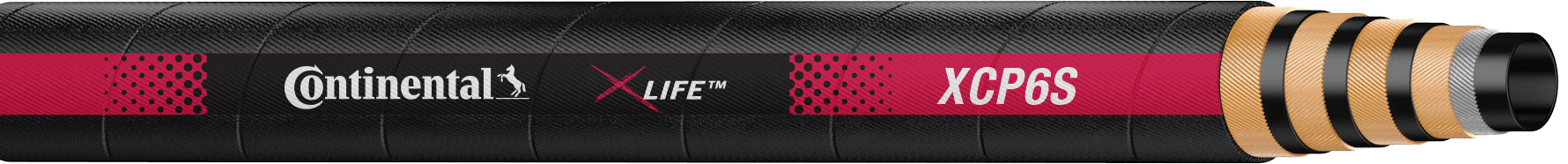

X-Life™ XCP6S

Find The Right Hose

Application

X-LIFE XCP6S is for very high-pressure hydraulic applications requiring extra abrasion resistance. It has excellent impulse performance and flexibility. Color-Coded layline system to identify pressure diferences.

Performance + Specs

SAE 100R15
EN 856 4SP
MSHA FLAME RESISTANT

Inner Tube

Synthetic Rubber

Reinforcement

4 or 6 alternating layers of spiraled high-tensile steel wire

Cover

Synthetic Rubber Black

Temperature Range

-40°F / -40°C ~ 250°F / 121°C

Key Features

Constant Pressure Rating

U.S. Coast Guard Approved

Extended Life™ Cover

1-2 Bend Radius

4:1 Safety Factor

Branding

Continental X-Life™ XCP6S-08 SAE 100R15/ EN 856 1/2" (R15) 6100PSI 42MPa 420 BAR Flame Resistant MSHA 2G-1C-14C/45

X-Life™ XCP6S

Product Numbers
Fittings

SAP	Product #	ID		OD		Max Working Pressure		Bend Radius		Fitting Type	Weight (lb/ft)
		Fraction ID	mm.	in.	mm.	PSI	MPa	in.	mm.
20882967	XCP6S-06	3/8	9.70	0.84	21.34	6100	42.06	3.54	89.92	SG	0.47
20879438	XCP6S-08	1/2	12.70	0.97	24.64	6100	42.06	3.54	89.92	SG	0.53
20889839	XCP6S-10	5/8	16.00	1.04	26.42	6100	42.06	4.72	119.89	SG	0.78
20864030	XCP6S-12	3/4	19.05	1.28	32.51	6100	42.06	4.72	119.89	SG	1.03
20879440	XCP6S-16	1	25.40	1.55	39.37	6100	42.06	5.90	149.86	SG	1.36
20882969	XCP6S-20	1-1/4	31.80	1.91	48.51	6100	42.06	11.42	290.07	SG	2.24
20864032	XCP6S-24	1-1/2	38.10	2.24	56.90	6100	42.06	20.87	530.10	SE	3.32
20901268	XCP6S-32	2	50.80	2.80	71.12	6100	42.06	24.80	629.92	SE	4.68
