VANTAGE -EPDM

Find The Right Hose

Application

Vantage EPDM hose is a lightweight and flexible economical air and water hose. It covers a wide range of industrial, construction and agricultural applications. Available in 200 & 300 PSI working pressures.

Performance + Specs

Construction Tube

EPDM SYNTHETIC RUBBER

Cover

EPDM SYNTHETIC RUBBER

Reinforcement

SPIRAL SYNTHETIC YARN

Temperature Range

-40°F / -40°C ~ 210°F / 99°C

Design Factor

Packaging

Reels

Branding

CONTINENTAL VANTAGE EPDM 3/16" (4.8 mm) 200 PSI W.P.

VANTAGE -EPDM 200

Order Codes: 569-206 (Black), 569-207 (Red), 569-218 (Blue), 569-216 (Yellow), 569-217 (Green)

Product Numbers

ID
(in)

ID
(mm)

Nom. OD
(in.)

Nom. OD
(mm)

Min. Burst (PSI)	Min. Burst (bar)	Color	PSI	Part Number

3/16

4.76

0.41

10.4

800	55.16	Black	200	21213403
800	55.16	Red	200	21213421

1/4

6.40

0.47

11.9

800	55.16	Black	200	21213404
800	55.16	Red	200	21213423

3/8

9.50

0.61

15.5

800	55.16	Black	200	21213420
800	55.16	Red	200	21213424

1/2

12.70

0.76

19.3

800	55.16	Black	200	21213405
800	55.16	Red	200	21213425

5/8

15.88

0.93

23.6

800	55.16	Black	200	21213406
800	55.16	Red	200	21213426

3/4

19.10

1.10

28.0

800	55.16	Black	200	21213407
800	55.16	Red	200	21213427

25.40

1.40

35.6

800	55.16	Black	200	21213409
800	55.16	Red	200	21213428

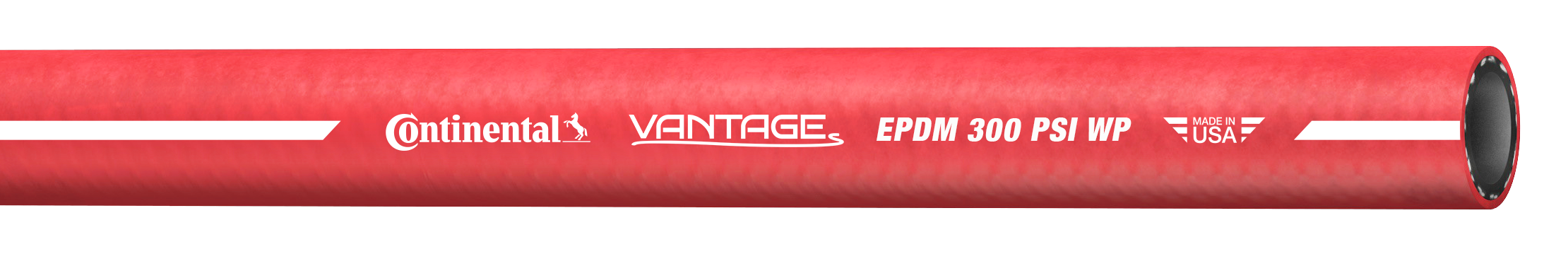

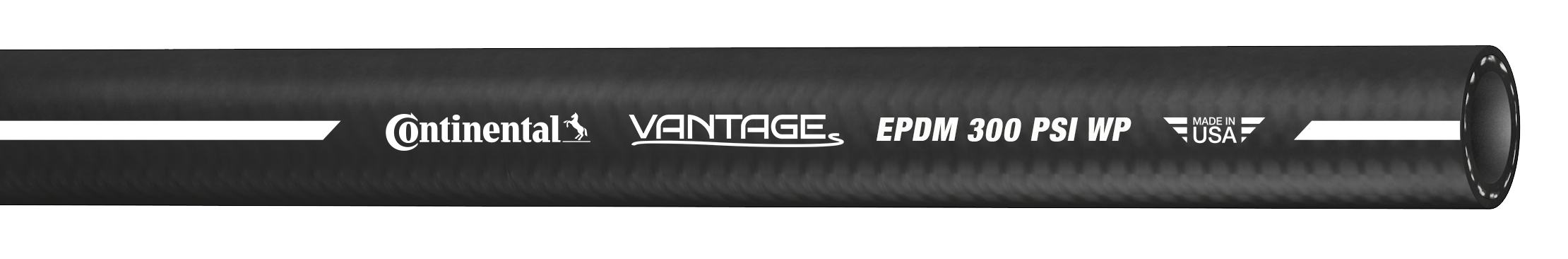

VANTAGE -EPDM 300

Order Codes: 569-202 (Black), 569-203 (Red), 569-210 (Yellow), 569-211 (Green), 569-212 (Blue)

Product Numbers

ID
(in)

ID
(mm)

Nom. OD
(in.)

Nom. OD
(mm)

Min. Burst (PSI)	Min. Burst (bar)	Color	PSI	Part Number

1/4

6.40

0.48

12.2

1200	82.74	Black	300	21212035
1200	82.74	Red	300	21211900

3/8

9.50

0.63

16.0

1200	82.74	Black	300	21212036
1200	82.74	Red	300	21211901

1/2

12.70

0.78

19.8

1200	82.74	Black	300	21212037
1200	82.74	Red	300	21211903

5/8

15.88

0.95

24.2

1200	82.74	Black	300	21212038
1200	82.74	Red	300	21211904

3/4

19.10

1.10

28.0

1200	82.74	Black	300	21212039
1200	82.74	Red	300	21211905

25.40

1.42

36.0

1200	82.74	Black	300	21212060
1200	82.74	Red	300	21211906
